- Kane 458s Flue Gas Analyser
- Probe
- Pressure connectors
- USB Charger
- Quick reference guide & analyser calibration certificate
- KANE IRP-3 Infra-red printer
- KAL1 air liquid temperature probe
- GLD/450plus gas leak detector
- Two KPCP clamp-on temperature probes
- ASP2 appliance sampling probe kit
- 12v in vehicle charger
- Pressure hose
- Large carry bag
- Measures CO, CO2, differential pressure and more, compatible with a range of fuels
- Kit includes a flueless appliance probe set ideal for cooker and grills
- Wireless connectivity as standard, upgradeable sensor with purge pump protection
- Qualifies for KANE CARE after sales support
Use reward points to get money off future purchases.
Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.
Found this product cheaper & in stock somewhere else? Give us the details and we'll endeavour to match the price.
To price match, contact us online or call 0113 248 9966.
We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.
Find out more on our delivery information page.
We want our customers to be fully satisfied with the goods they purchase from us, offering returns for up to 60 days.
Find out more about our refunds policy here.
We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.
To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.
Use reward points to get money off future purchases.
Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.
Found this product cheaper & in stock somewhere else? Give us the details and we'll endeavour to match the price.
To price match, contact us online or call 0113 248 9966.
We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.
Find out more on our delivery information page.
We want our customers to be fully satisfied with the goods they purchase from us, offering returns for up to 60 days.
Find out more about our refunds policy here.
We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.
To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.

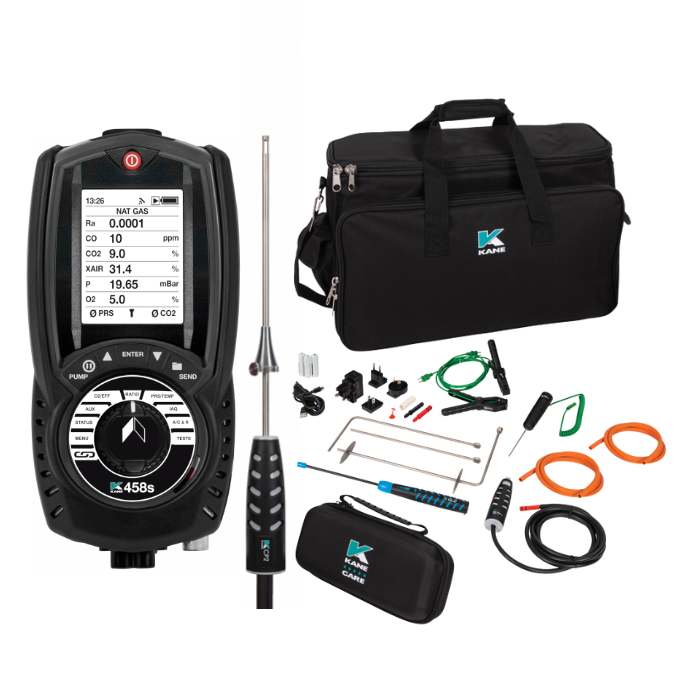

Kane 458s Flue Gas Analyser CPA1 Kit
The Kane 458s Flue Gas Analyser CPA1 Kit, with its innovative purge pump sensor protection system is the ideal instrument for completing commissioning tests on new boilers. The automated test sequence adheres strictly to the guidelines as detailed in Technical Bulletin 143. Measure both flue and ambient CO concentrations between 0 and 2000ppm as CO measurement is a crucial part of the commissioning procedure, the analyser is also H2 ready up to 20% blend. Wireless connectivity is included as standard in the 458s model, which comes complete with a fully upgradeable sensor. Operators can calculate NO, NO2, S02 and high range CO with the addition of an optional sensor.
Capable of measuring an array of gasses, the Kane 458s calculates differential pressure, differential temperature & CO2 concentration. This creates a supreme instrument for analysing combustion performance and tightness/ let by testing. The large screen can simultaneously display six readings including important combustion factors such as efficiency, CO/CO2 ratio, oxygen content and excess air. Operating via a simple rotary dial and connectible through infrared to an included IRP-2 printer, the flue gas analyser can print results quickly and efficiently.
The CPA1 Kit version of the Kane 458s Flue Gas Analyser features a wide range of probes. An ASP2 sampling probe kit boasts three probes for performing analysis tests on flueless appliances. The two supplied KPCP clamp-on probes can measure flow & return temperatures while an air/liquid temperature probe is also provided. Ensure user safety with the GLD/450plus gas leak detector which warns of combustible gas concentrations above 50ppm.
Combustion analysis is possible with the Kane 458s CPA1 Kit on a range of fuels such natural gas, LPG, wood pellets, light oil, butane & propane. The analyser comes complete with a carry bag and is covered by a 10 year warranty from Kane.
Kane Link
Future proof your flue gas analyser with the incredible Kane Link feature, available as standard on all Kane 458s, 958 & 988 analysers. As you take on bigger and bolder jobs, remain safe in the knowledge your Kane Flue Gas Analyser can handle whatever comes along. Even with the implementation of advanced systems such as Ground Source Heat Pumps and Hydrogen Boilers across the UK, thanks to Kane Link your Flue Gas Analyser will never be left behind.
Wirelessly connect any compatible Kane product which also features Kane Link, allowing you and your analyser to easily balance heating systems, check A/C units or kitchen fans, test rooms for CO and so much more. With Kane Link you're free to gather all information on the same device, your personal Kane Flue Gas Analyser. Kane Link enabled instruments currently include:
- Kane-WPCP2 Wirelss Pipe Clamp Temperature Probes
- Kane-DTHA2 Wireless Airflow, Temperature & Humidity Adaptor
- Kane 79 Wireless Ambient Carbon Monoxide (CO) Monitor
These Kane Link enabled analysers are not only built for harsh on-site conditions, should damage occur they are eligible for the amazing after care provided directly from Kane.
Kane Live & Printer Apps
The Kane Live App is compatible with Android Devices and free from the Play Store. This multilingual App includes several extremely useful features beneficial for anyone with a Flue Gas Analyser. See your test results live on your smart device and even tag them with real-time GPS data & printouts all while still physically on site. Printouts can be shared along with downloaded analyser logs as CSV files, with analyser user details amendable within the App itself.
The Kane Printer App is compatible with Android/iOS and is free from both the Play & App Store. With this app users can quickly connect to their analyser and view test results before emailing them to their contacts. Log each test location via GPS then save printouts to edit before transfer. Fully customise personal notes even in poor lighting conditions as a useful NightMode is incorporated within the app.
Kane Care
5 Year Service Plan (Option)
With KANE’s 5 Year Service Plan, you can be assured that the first 4 service and recalibration are taken care of providing you with 5 years of cover for your new analyser with no further costs to worry about.
By selecting this option, not only will you save over £100 on recalibration costs, but you will also benefit from the following:
- No additional service and calibration costs for the first 5 years
- Free collection and delivery options for annual service and recalibration
- SAME DAY service and recalibration
- No quibble repairs and no hidden costs
- Theft protection – in the unfortunate event that your analyser is stolen, KANE will replace it for FREE!
Complete peace of mind for less than 22p per day.
Simply check the box ‘Add KANE 5 Year Service Plan’ when you place your order, and your new analyser with ship with a 5 year service pack.
After Sales Support
This product also qualifies for Kane Care after sales support, guaranteeing you a 10 year 'No Quibble' warranty for your annual service, same day service & recertification and free tracked, next day delivery to Kane with returns.
All Kane Flue Gas Analysers come with the after sales support as standard.
For more information, please visit Kane.co.uk.
Key Features
- Measure CO range 0 to 20%
- Measure CO2 range 0 to 2000ppm
- Features Kane IRP-2 infrared printer
- KAL1 air liquid temperature probe
- GLD/450plus gas leak detector for user safety
- Includes ASP2 sampling probe kit
- Two KPCP clamp-on temperature probes featured
- Pressure hose included
- Analyser has built-in wireless communication
- Measures differential pressure and temperature
- Hydrogen ready (H2 up to 20% blend)
- Calculate ratio of CO/CO2
- Calculate the oxygen content
- Calculate the excess air
- Efficiency calculation
- Let by/tightness testing
- Automatic commissioning test sequence for boilers
- Protect CO sensor from over range with purge pump system
- Suitable for vast variety of fuels
- Carry bag provided
- Kane 10 Year Warranty
Kane part number: 458S CPA1 Kit
* Selecting any additional filters may affect lead times
Kane 458s comparison table
The Kane 458s is available as a standalone product or as part of a kit. The table below shows a comparison table with all the different options available:
Standalone Analyser | Standard Kit | PRO Kit | Pro Kit 2 | CPA1 Kit | CPA1 Kit 2 | Oil Kit | COM-CAT Kit | CMDDA1 Kit | |
---|---|---|---|---|---|---|---|---|---|
Kane 458s Flue Gas Analyser | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Wireless Connectivity | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Probe | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Pressure Connectors | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
CO Sensor Purge Pump Protection | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
KANE IRP-3 Infra-red printer | - | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Air/liquid temperature probe | - | - | ✔ | ✔ | ✔ | ✔ | - | - | - |
GLD450 Plus Gas Leak Detector | - | - | ✔ | ✔ | ✔ | ✔ | - | - | - |
Pipe Clamp Temperature Probes | - | - | 2 | - | 2 | - | - | - | - |
Pressure connection hose | - | - | ✔ | - | ✔ | - | - | - | - |
ASP3 Appliance Sampling Probe Kit | - | - | - | - | ✔ | ✔ | - | - | - |
Oil Gauge test kit | - | - | - | - | - | - | ✔ | - | - |
Kane MSP Smoke Test Kit | - | - | - | - | - | - | ✔ | - | - |
Calibration Report | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Carry Case | - | ✔ | ✔ | - | ✔ | - | ✔ | ✔ | ✔ |
WPCP Wireless Clamp on pipe probes | - |
- |
- | 2 | - | 2 | - | - | - |
Kane 20106 Backpack | - | - | - | ✔ | - | ✔ | - | - | - |
DTHA 2 Airflow | - | - | - | - | - | - | - | ✔ | - |
Temperature & RH Probe | - | - | - | - | - | - | - | ✔ | - |
20128 extender | - | - | - | - | - | - | - | ✔ | - |
Kane 79 CO Monitor | - | - | - | - | - | - | - | - | ✔ |
CPS1 room CO test probe | - | - | - | - | - | - | - | - | ✔ |
Kane Flue Gas Analyser Series
The Kane 358 Flue Gas Analyser is a highly useful tool capable of completing a variety of tasks crucial for commissioning and performing maintenance on gas systems & boilers. However the also available Kane 458 Combustion Flue Gas Analyser includes more advanced features such as CO safety checks and an optional NO sensor. Whilst with less features, the 258 is a more affordable package and an ideal entry level Flue Gas Analyser.
Kane 258 | Kane 358 | Kane 458s | |
---|---|---|---|
Features | Yes | Yes | Yes |
Temperature Measurment | Yes | Yes | Yes |
Wireless Connectivity | Yes (Option) | Yes (Option) | Yes |
Pressure Measurment | - | Yes | Yes |
Test Sequences | - | Yes | Yes |
Room CO | - | - | Yes |
Sensor Upgrades | - | - | Yes |
KANE LINK | - | - | Yes |
Indoor Air Quality | - | - | Yes (Option) |
Applications | |||
Combustion Performance Checks | Yes | Yes | Yes |
Combustion Efficiency Checks | Yes | Yes | Yes |
Flue Draughts | - | Yes | Yes |
Boiler Commissioning Test | - | Yes | Yes |
Let By & Tightness Tests | - | Yes | Yes |
CO safety checks | - | - | Yes |
Measures | |||
CO 0 - 2,000pm | Yes | Yes | Yes |
O2 0 - 21% | Yes | Yes | Yes (option) |
Differential Temperature | - | Yes | Yes |
Differential pressure meter +/- 80mbrar | - | Yes | Yes |
CO2 direct with an Infra-Red sensor 0 - 20% | - | - | Yes |
NO 0 - 600ppm | - | - | Yes (option) |
CO 0 - 10,000ppm | - | - | Yes (option) |
Calculates | |||
CO2 0 - 20% | Yes | Yes | Yes |
CO / CO2 ratio | Yes | Yes | Yes |
Excess Air | Yes | Yes | Yes |
Combustion Efficiency | Yes | Yes | Yes |
O2 | - | - | Yes |
Contents | |||
FGA CP2 Probe | Yes | Yes | Yes |
USB Charger | Yes | Yes | Yes |
IRP-3 Infrared Printer | Yes (option) | Yes (option) | Yes (option) |
Carry Bag | Yes (option) | Yes (option) | Yes (option) |
Pressure Connectors | - | - | Yes |
GLD Gas Leak Detector | - | Yes (option) | Yes (option) |
KAL1 & KPCP Pipe Clamp Temperature Probes | - | Yes (option) | Yes (option) |
HARHOSE Pressure tubing | - | Yes (option) | Yes (option) |
KANEMSP & SP9 Smoke Pump & Papers | - | Yes (option) | Yes (option) |
ASP3 Oven & Grill Probes | - | Yes (option) | Yes (option) |
Oil Pressure test set | - | Yes (option) | Yes (option) |
