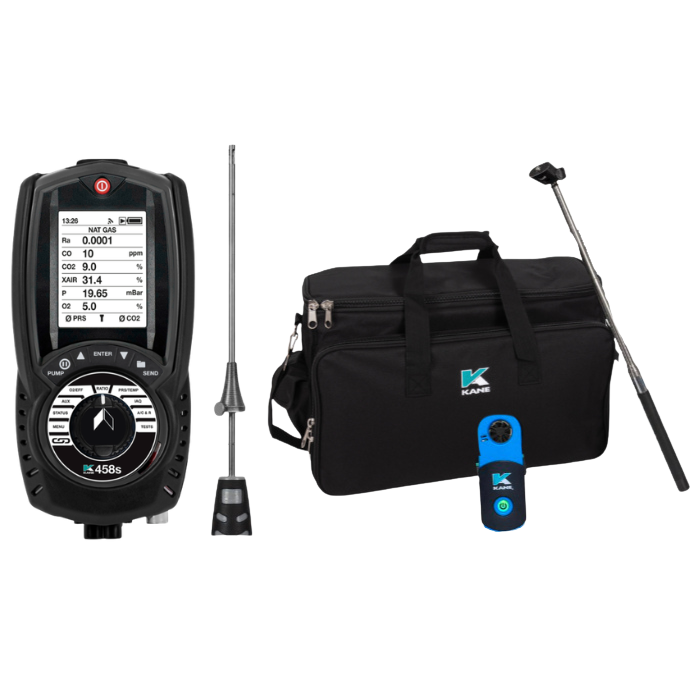

KANE 458s Link Flue Gas Analyser COM-CAT Kit

KANE 458s Link Flue Gas Analyser COM-CAT Kit

The KANE 458s Link Flue Gas Analyser COM-CAT Kit features the DTHA2 Wireless Link Airflow Meter, which is able to connect via the integrated wireless functionality to the 458s analyser. Using the DTHA1 users can wirelessly measure airflow, temperature and humidity, viewing real time results via the handset. The 20128 Extender Stick provides extra reach due to its telescopic handle, allowing the DTHA2 to be placed in harder to reach locations

With the Kane DTHA2, users are able to measure air flow from 1.1 m/s to 20m/s and temperature from -20 to 50ºC. Relative humidity can also be calculated from 0.1 to 99%

Kane 458s Flue Gas Analyser

The Kane 458s Flue Gas Analyser allows for the use of the flue gas analyser to conduct a number of aspects of combustions, including CO/CO2 ratio, oxygen content, excess air and efficiency and also tightness and let by. With wireless communication, the 458s is hydrogen (H2) ready (up to 20% blend) with a fully upgradable sensor. With the addition of an optional sensor that allows for the calculation of NO, NO2 SO2 and high range CO.

The Kane 458s is capable of detecting a number of different fuel types including natural gas, LPG, Wood pellets, butane, light oil and propane. With an innovative purge pump system that ensures the Kane 458s CO sensor is protected from over range. CO measurement function is deployed using the automatic boiler commissioning test sequence that allows the user to certify new boilers according to the requirements of Technical Bulletin 143. With a large screen showing six lines of text showing multiple test parameters with test results instantly available in a physical copy thanks to the included Kane IRP-3 Infrared Printer.

As standard the Kane 458s can calculate O2/CO2, CO/CO2 ratio, excess air, combustion efficiency and with an optional sensor NOx. Different fuel types can be tested such as natural gas, butane, LPG, light oil, wood pellets and propane. Using the included IRP-3 printer, users are able to data hold, log and print reports.

Kane Link

The Kane 458s is compatible with Kane Link, allowing for wireless connection to all Kane products which feature Kane Link. Kane Link will allow for the easy balancing of heating systems, check A/C units or kitchen fans, test rooms for CO and many more applications. Kane Link allows for the collection of data and store it on the same device,

Kane Live

The Kane Live App is compatible with Android devices and free to download from the Google Play store. The multilingual Lopo allows for test results to viewed in real time and tag them with real time GPS data and printouts even when on site. Printouts can be shared with colleagues or customers with downloaded analyser logs as CSV files

Kane 458s comparison table

The Kane 458s is available as a standalone product or as part of a kit. The table below shows a comparison table with all the different options available:

Key Features

• Carbon monoxide measurement 0 to 20%
• Carbon dioxide measurement 0 to 2000ppm
• Kane IRP-3 infrared printer included
• Kane DTHA2 Airflow
• Temperatrue and RH probe
• 20128 extender
• Analyser has built-in wireless communication
• Measures differential pressure and temperature
• Hydrogen ready (H2 up to 20% blend)
• Calculate CO/CO2 ratio
• Calculate oxygen content
• Calculate excess air
• Efficiency calculation
• Let by/tightness testing
• Automatic commissioning test sequence for boilers
• Purge pump system protects CO sensor from over range
• Suitable for wide variety of fuels
• Kane 10 Year Warranty

Kane part number: 458S COM-CAT Kit

* Selecting any additional filters may affect lead times

Kane Flue Gas Analyser Series

The Kane 458s Combustion Flue Gas Analyser includes more advanced features than the Kane 258 and 358 analsyers, such as CO safety checks and an optional NO sensor. The Kane 358 Flue Gas Analyser is a highly useful tool capable of completing a variety of tasks crucial for commissioning and performing maintenance on gas systems & boilers. Whilst with less features, the 258 is a more affordable package and an ideal entry level Flue Gas Analyser.
