KANE 460 HVACR, Heating, Cooling, Refrigeration and IAQ Analyser
SKU: KANE460
- Flue Gas Analyser with wireless connectivity
- Install and commission boilers, heat pumps, A/C and refrigeration systems
- 2psi/160 mbar pressure sensor allows for Flue draught, system and tightness tests to be performed
- Learn about Kane cost of ownership & calibration
Use reward points to get money off future purchases.
Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.
Found this product cheaper & in stock somewhere else? Give us the details and we'll endeavour to match the price.
To price match, contact us online or call 0113 248 9966.
We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.
Find out more on our delivery information page.
We want our customers to be fully satisfied with the goods they purchase from us, offering returns for up to 60 days.
Find out more about our refunds policy here.
We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.
To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.
£810.00
£972.00
Use reward points to get money off future purchases.
Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.
Found this product cheaper & in stock somewhere else? Give us the details and we'll endeavour to match the price.
To price match, contact us online or call 0113 248 9966.
We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.
Find out more on our delivery information page.
We want our customers to be fully satisfied with the goods they purchase from us, offering returns for up to 60 days.
Find out more about our refunds policy here.
We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.
To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.
KANE 460 HVACR, Heating, Cooling, Refrigeration and IAQ Analyser

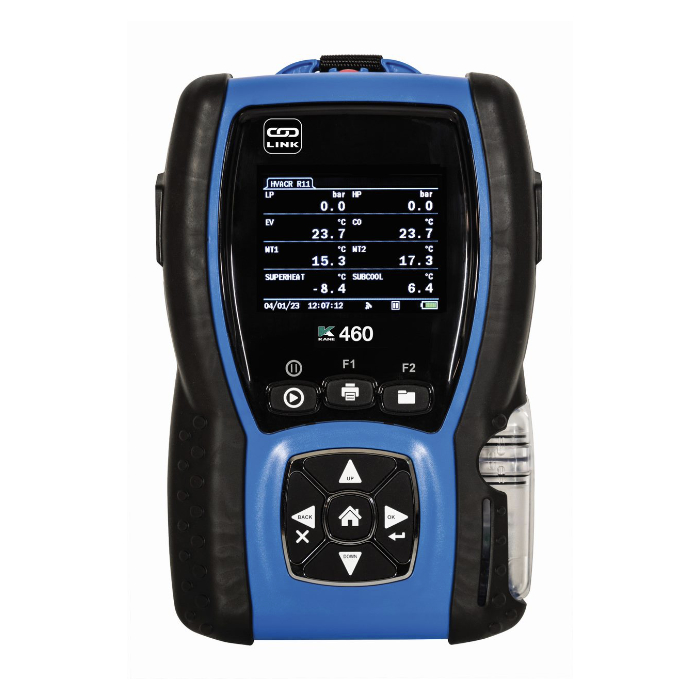

The KANE 460 HVACR, Heating, Cooling, Refrigeration and IAQ Analyser is a portable, multi-gas flue gas analyser that is ideal for a wide range of applications, including: the installation, commissioning, and servicing of boilers, heat pumps, AC and refrigeration systems without the need for a manifold or hose. Users of the Kane 460 are able to test both domestic and commercial heating and hot water systems. Users are able to perform safety checks to determine if there is CO in a room or around an appliance. When commissioning boilers sweep and room CO migration tests can be performed, as well as measuring a building IAQ and ventilation.
The Kane 460's 2psi/160 mbar pressure sensor allows for Flue draught, system and tightness tests to be performed. The temperature flow and return with high and low readings alongside high and low side pressures can also be performed when using the Kane 460 alongside a Kane LINK wireless device.
The Kane 460 provides users with a number of test readings that it can calculate and measure a wider range of applications including:
- CO 0-10,000 ppm H2 compensated with over range protection
- O2 0-21%
- NO 0-5,000ppm (option)
- Temperature inlet/flue gas, differential pressure/ambient
- High accuracy differential pressure meter +/- 160mba
- Calculate CO2 0-99%
- Calculate the CO/CO2 ratio
- Excess air
- A/C and refrigeration subsoil and superheat
- Calculate the combustion efficiency
The Kane 460 is a user-friendly instrument that is easy to transport and operate. It features a large, backlit display and a simple menu system. The analyser also comes with a number of accessories, including a flue gas probe, a protective rubber sleeve, a battery charger, a test report, and a carrying case. The Kane 460 is protected from vapour damage thanks to the Hydrophobic water trap.
The Kane 460 allows for a number of fuel types to be measure including Natural Gas, LPG, Butane, Propane, Light Oil, Heavy Oil and plus user fuels. Over 40 refrigerants can be detected including R22, R32, R134a, R290 and R410A.
Kane Link
The KANE 460 HVACR, Heating, Cooling, Refrigeration and IAQ Analyser is compatible with Kane Link. Kane Link allows users to wirelessly connect to any compatible Kane product that also features the Kane Link function, allowing the operator to perform more testing such as balance heating systems, check A/C units or kitchen fans, test for CO and more. Using Kane Link users are able to gather all information on the same device.
KANE CARE
5 Year Service Plan (Option)
With KANE’s 5 Year Service Plan, you can be assured that the first 4 service and recalibration are taken care of providing you with 5 years of cover for your new analyser with no further costs to worry about.
By selecting this option, not only will you save over £100 on recalibration costs, but you will also benefit from the following:
- No additional service and calibration costs for the first 5 years
- Free collection and delivery options for annual service and recalibration
- SAME DAY service and recalibration
- No quibble repairs and no hidden costs
- Theft protection – in the unfortunate event that your analyser is stolen, KANE will replace it for FREE!
Complete peace of mind for less than 22p per day.
Simply check the box ‘Add KANE 5 Year Service Plan’ when you place your order, and your new analyser with ship with a 5 year service pack.
After Sales Support
This product also qualifies for KANE CARE after sales support, guaranteeing you a lifetime 'No Quibble' warranty for your annual service, same day service & recertification and free tracked, next day delivery to Kane with returns.
KANE CARE also provides theft protection, with 50% off when replacing your stolen KANE analyser.
All KANE Flue Gas Analysers come with the after sales support as standard.
For more information, please visit Kane.co.uk.
Kane Live App
Users are able to download the Kane Live App available on both Android and iOS devices, allowing for quick connection to the analyser to log, store and transfer data all in one place. Real time test data with GPS location can also be saved and documented. PDF reports and certificates can be generated whilst test results can also be sent in CSV format for spreadsheets.
Kane 460 Flue Gas Analyser Comparison table

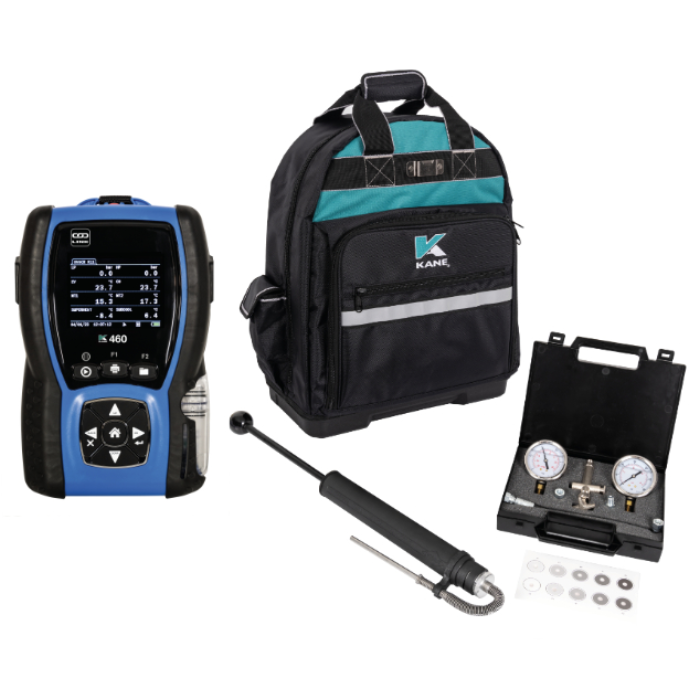

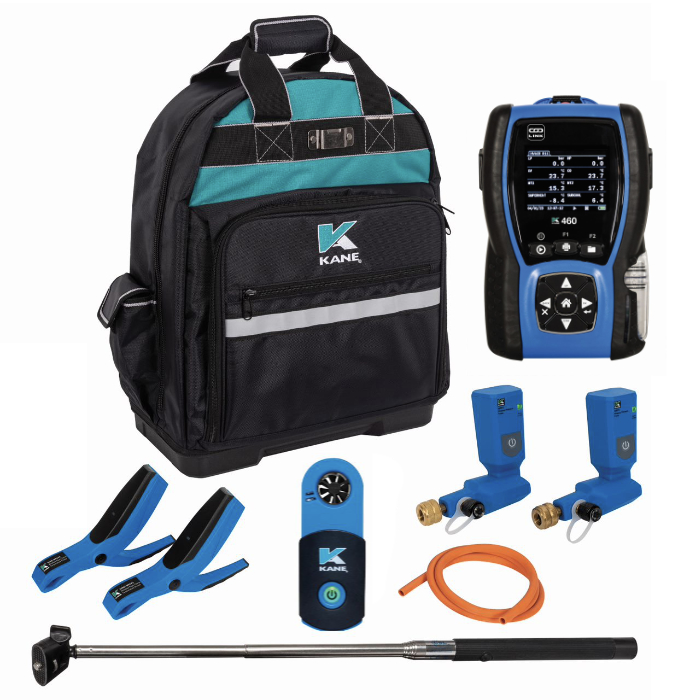

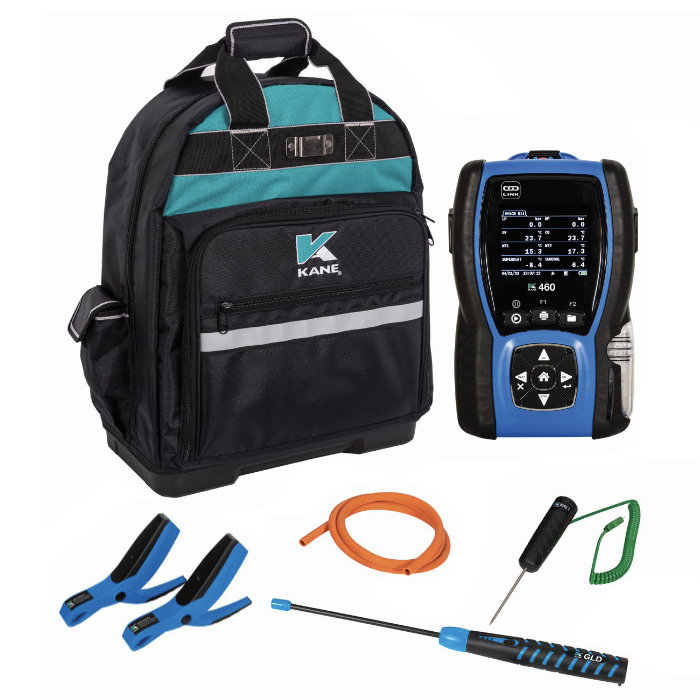

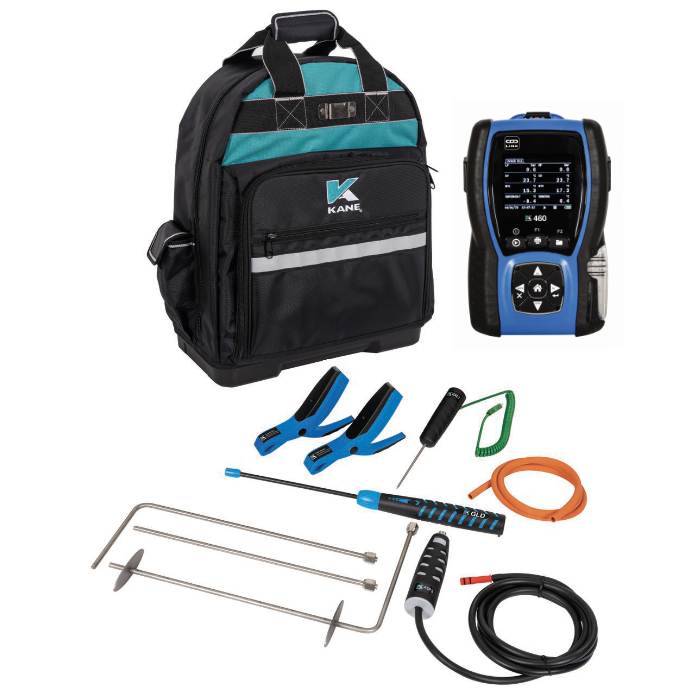

The KANE 460 HVACR, Heating, Cooling, Refrigeration and IAQ Analyser is available as a stand alone instrument or a part of a kit. The table below shows the contents of each available kit.
| Kane 460 Analyser & Probe | Kane 460 Pro Kit 2 | Kane 460 CPA Kit 2 | Kane 460 HVACR Kit | Kane 460 Oil Kit | |
|---|---|---|---|---|---|
| Kane 460, CP2 probe & CU12VDC2A21 Charger | ✔ | ✔ | ✔ | ✔ | ✔ |
| MSC00117 Protective Pouch | ✔ | ✔ | ✔ | ✔ | ✔ |
| 20106 Backpack | ✔ | ✔ | ✔ | ✔ | |
| GLD Gas Leak Detector | ✔ | ✔ | |||
| KAL1 Temp Probe | ✔ | ✔ | |||
| Kane-WPCP Wireless Temperature Clamp x2 | ✔ | ✔ | ✔ | ||
| HARHOSE Pressure Tubing | ✔ | ✔ | |||
| ASP3 Oven, Grill & Fire Probes | ✔ | ||||
| Kane-DTHA2 & 20128 Extender | ✔ | ||||
| Kane-WPP Wireless Pressure Probe x2 | ✔ | ||||
| Kane MSP Smoke Test Kit | ✔ | ||||
| Kane Oil gauge Test Kit | ✔ |
Key Features
- Temperature inlet/flue gas, differential pressure/ambient
- High accuracy differential pressure meter +/- 160mba
- Install, commission, and service boilers, heat pumps, AC and refrigeration systems without the need for a manifold or hose
- 2psi/160 mbar pressure sensor allows for Flue draught, system and tightness tests to be performed
- Over 40 refrigerants can be detected including R22, R32, R134a, R290 and R410A
- Measure a number of gases including Natural Gas, LPG, Butane, Propane, Light Oil, Heavy Oil and plus user fuels
- CO 0-10,000 ppm H2 compensated with over range protection
- O2 0-21%
- NO 0-5,000ppm (option)
- Temperature inlet/flue gas, differential pressure/ambient
- High accuracy differential pressure meter +/- 160mba
- Calculate CO2 0-99%
- Calculate the CO/CO2 ratio
- Excess air
- A/C and refrigeration subsoil and superheat
- Calculate the combustion efficiency
- Kane Live
- Kane Link
- Kane Care 5 Year Service Plan (optional)
What's In The Box?
|
Measures
Calculates
Fuel and Refrigerants
|
Kit Option
Kit Option
Kit Option
Kit Option
-
-
