Compact and portable, the Megger TDR2000/3 Advanced Dual Channel TDR is a high resolution, dual channel time domain reflectometer, perfect for locating metallic cables faults and more.
Suitable for use with all types of paired metallic cables, the TDR2000/3 has a 20km maximum range, with five output impedances available, an auto impedance matching feature and a velocity factor between 0.2 and 0.99 to meet any cable test requirements.
Available In Two Models:

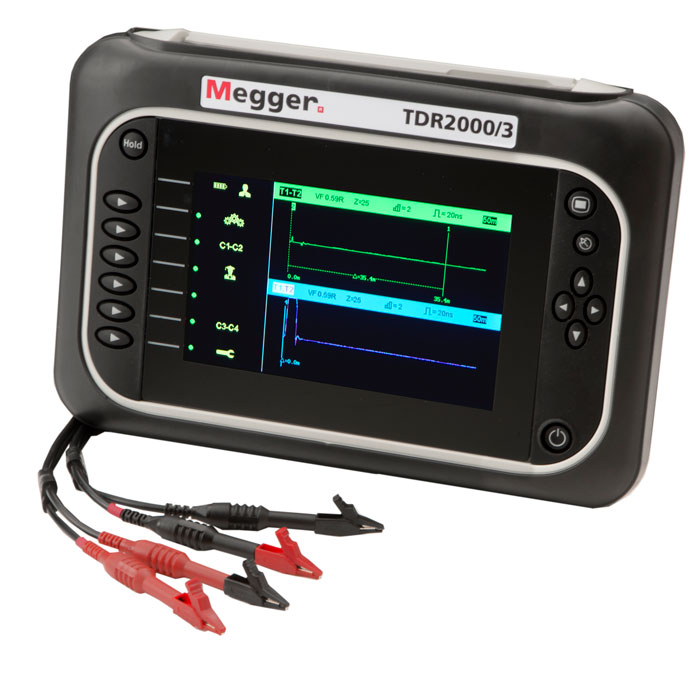

TDR2000/3: A fully featured high resolution TDR with backlit colour display and powered by Li-ion rechargeable battery batteries. This model comes complete with 2 pairs of mini-clip Test Leads. Part number: 1003-036
TDR2000/3P: The same as the TDR2000/3 but with dual fused test leads replacing the mini-clip leads. Part number: 1003-037
Comprehensive Dual Channel capability with dual aspect display
AUTO set up mode for instant use
Ultra fast pulse for near end fault identification
Xpert guidance to potential fault
IP54 rating
Designed for use on all metallic paired cables
What's In The Box?
Megger TDR 2000/3
Carry Case
Dual Mini-Clamp Test Leads / Dual Fused Test Leads (Depending on selected model)
User Guide CD
Specification
Except where otherwise stated, this specification applies at an ambient temperature of 20°C.
General
Range: Up to 20000m with a minimum resolution of 0.1m
Accuracy: ±1% of range ±1 pixel at 0.67 VF
Resolution: 1% of range
Input Protection: Complies with IEC61010-1 for connection to live systems up to 150 V CAT IV. Fused leads must be used if the voltage between the terminals exceeds 300 V.
Output Pulse: Up to 20 volts peak to peak into open circuit. Pulse widths determined by range and cable.
Gain: Set for each range with user selectable steps (in Manual operating mode)
Velocity Factor: Variable from 0.2 to 0.99 in steps of 0.01
TX Null: Automatic
Power Down: User programmable auto power off timer 1, 5, 10 mins or never
Battery: Li-ion rechargeable battery
Battery Charge Time: 6 hours at 0 °C to 40 °C
Battery Life: 12 hours typical
Safety: Complies with IEC61010-1 for connection to live systems up to 150 V CAT IV or 300 V CAT III. Fused leads must be used if the voltage between the terminals exceeds 300 V. Compliant with EN60950-1, EN61010-3, UN38.3 and EN62133
EMC: Complies with Electromagnetic Compatibility Specifications (Light industrial) BS EN 61326-1, with a minimum performance of ‘B’ for all immunity tests.
Part numbers: 1003-036 (TDR2000/3) / 1003-037 (TDR2000/3P)
Mechanical
IP rating: IP54
Case: ABS
Dimensions: 290 x 190 x 55 mm (11.4 x 7.5 x 2.2 inches)
Weight: 1.7kg (3.8lbs)
Connectors: Four 4mm-safety terminals and two F connectors. Other standard push on adapters will fit the TDR2000/3.
Test Lead: 2 metres long consisting of 2 x 4mm shrouded connector to miniature crocodile clips (TDR2000/3) or Bed-of-Nails lead set (CFL535G) or .5 metre fused leads (TDR2000/3P)
Display: 800 x 480 pixel colour graphics LCD, viewable in external environments. User selectable colour schemes
Backlight: Permanent backlight with all colour schemes
Environmental
Operating Temperature Range and Humidity: -15 °C to +50 °C (5 °F to 122 °F)
Storage Temperature Range and Humidity: -20 °C to 70 °C (-4 °F to 158 °F)
