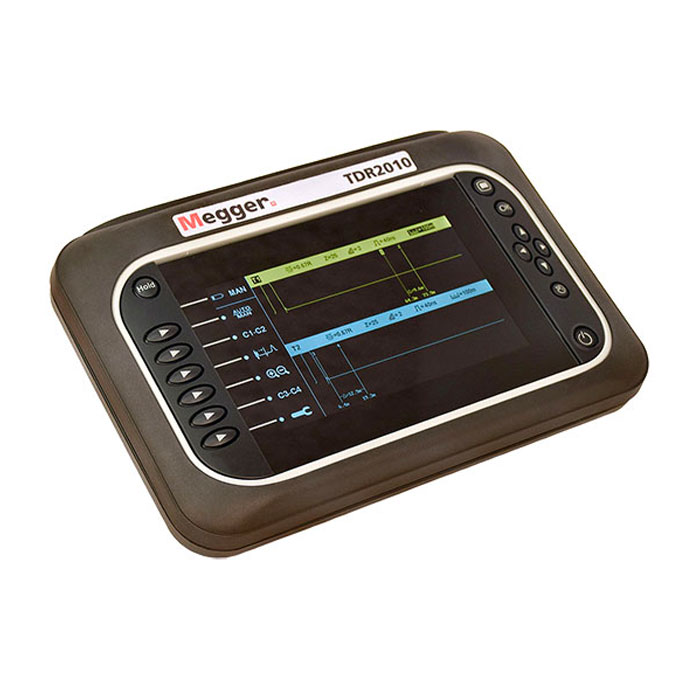

Megger TDR2010 Advanced Dual Channel Time Domain Reflectometer

Be the first to review this product

  • Minimum resolution of 0.1m and maximum range of 20km
  • Suitable for paired cables in communications and power circuits
  • Auto-selection of appropriate settings and auto-find for major events in trace

rrp £2,645.00

now £2,340.00 (Ex. VAT) £2,808.00 (Inc. VAT)

rrp £2,645.00

OR

Please select a free gift below.

"Backlit, colour screen gives user clear visual depiction of traces"

  • Description

    Megger TDR2010 Advanced Dual Channel Time Domain Reflectometer

    The Megger TDR2010 Advanced Dual Channel Time Domain Reflectometer is a sophisticated, dual-channel time domain reflectometer which is perfect for fault-finding on paired metallic cables within telecom TVN-3 circuits and 150V Cat IV power circuits. The highly advanced measurement capabilities mean that the minimum resolution is just 0.1m whilst a range of 20km can be tested at any one time (depending on velocity factor and cable type). The excellent versatility of the Megger TDR2010 is manifested in its five options for output impedance (25Ω, 50Ω, 75Ω, 100Ω & 125Ω) as well as a fully adjustable velocity factor (0.2 to 0.99) that is suitable for any cable set. In addition, a 2ns pulse makes it possible to conduct near-end fault location.

    The Megger TDR2010 has a very straightforward user interface with navigation keys and soft keys whilst auto-select chooses the best settings based on the required range. This can, however, be manually overridden to make fine adjustments. The dual trace and cursor functions allow the user to instantly see the distance between two spots for ease of use.

    Once data has been gathered, the Megger TDR2010 has several ways of displaying and analysing it. Most prominently, the backlit, colour, LCD screen displays readings graphically and clearly so faults are visible at a glance. The resolution and colour scheme can be adjusted to suit the user’s preferences and trace hold allows visual comparison of two traces on screen. The user can explore the trace using the AutoFind function which adjusts the range and gain before finding the first major event. Another press of the button will find the next major event but a user can also manually assess the trace if he or she so prefers.

    Trace tagging makes use of the Megger TDR2010’s 100-trace internal storage by maintaining accurate records of circuit details next to every saved result. Saved traces can be shown on screen at any time or transferred to a computer via the supplied USB port, USB cable and TraceXpert software. The software allows the user to download, report and upload saved traces into a database quickly and simply in addition to providing for other data-processing needs.

    The Megger TDR2010 is a highly sophisticated instrument with excellent data gathering features in addition to an advanced user interface and data display system.

    Megger part number: 1005-447

    Key Features

    • Suitable for paired wires in Telecom TVN-3 circuits and Cat IV 150V power circuits
    • Minimum resolution of 0.1m and maximum range of 20km
    • Five output impedance options (25Ω, 50Ω, 75Ω, 100Ω, 125Ω)
    • Variable velocity factor between 0.2 and 0.99
    • 2ns pulse for near-end fault finding
    • Auto-selection of settings (with manual override)
    • Backlit, colour LCD screen with graph displays
    • Auto-find function for major events (with manual override)
    • Trace comparison function
    • 100-trace internal memory
    • Trace tagging
    • USB data download with TraceXpert software
    • 12-hour typical battery life
    • Suitable for indoor and outdoor use (IP54 standard)
  • Specification

    Except where otherwise stated, this specification applies at an ambient temperature of 20°C.

    GENERAL

    Range (m; ft; ns)

    Up to 20000m with a minimum resolution of 0.1m

    • 10; 30; 125
    • 25; 75; 250
    • 50; 150; 500
    • 100; 300; 100
    • 250; 750; 2500
    • 500; 1500; 5000
    • 1000; 3000; 10000
    • 2500; 7500; 25000
    • 5000; 15000; 50000
    • 10000; 30000; 100000
    • 20000; 60000; 200000
    • Accuracy: ±1% of range ±1 pixel at 0.67 VF [Note - The measurement accuracy is for the indicated cursor position only and is conditional on the velocity factor being correct.
    • Resolution: 1% of range
    • Input protection: This instrument complies with IEC61010-1 to protect the user in the event of connection to live systems up to 150 V CAT IV. This instrument is designed for use on de-energised systems but fused leads must be used if the potential voltage between terminals could exceed 300 V.
    • Output pulse: Up to 20 volts peak to peak into open circuit. Pulse widths determined by range and cable.
    • Gain: Set for each range with user selectable steps (in Manual operating mode)
    • Velocity factor: Variable from 0.2 to 0.99 in steps of 0.01
    • TX null: Automatic
    • Power down: User programmable auto power off timer 1, 5, 10 mins or never
    • Battery: Li-ion rechargeable battery
    • Battery charge time: 6 hours at 0 °C to 40 °C
    • Battery life: 12 hours typical
    • Safety: This instrument complies with IEC61010-1 for connection to live systems up to 150 V CAT IV or 300V CAT III. Fused leads must be used if the voltage between the terminals exceeds 300 V. Compliant with EN60950-1, EN61010-3, UN38.3 and EN62133
    • EMC: Complies with Electromagnetic Compatibility Specifications (Light industrial) BS EN 61326-1, with a minimum performance of ‘B’ for all immunity tests.

    MECHANICAL

    • IP rating: The instrument is designed for use indoors or outdoors and is rated to IP54.
    • Case: ABS
    • Dimensions: 290 mm (11.4 in) x 190 mm (7.5 inches) x 55 mm (2.2 inches)
    • Weight: 1.7kg (3.8lbs)
    • Connectors: Four 4mm-safety terminals and two F connectors. Other standard push on adapters will fit the TDR20xx series.
    • Test lead: 1.5 metres long consisting of 2 x 4mm shrouded connector to miniature crocodile clips (TDR2000/3 and TDR2010) or 1.5 metre fused leads (TDR2000/3P)
    • Display 800 x 480 pixel colour graphics LCD, viewable in external environments.

    Colour Schemes

    • Selectable - TDR2000/3 x2 TDR2010 x8
    • Custom - TDR2000/3 x1 TDR2010 x2
    • Backlight: Permanent backlight with all colour schemes

    ENVIRONMENTAL

    • Operating temperature range and humidity: -15 °C to +50 °C (5 °F to 122 °F)
    • Storage temperature range and humidity: -20 °C to 70 °C (-4 °F to 158 °F)
  • Supplied Accessories

    • Megger TDR2010 Advanced Dual Channel Time Domain Reflectometer
    • Megger TDR2010 Advanced Dual Channel Time Domain Reflectometer instructions
    • 2 x Miniature Clip Test Lead Set
    • Dual fused test lead set (2 pairs)
    • Download kit
    • Carry case
    • User guide CD
    • AC/DC charger
