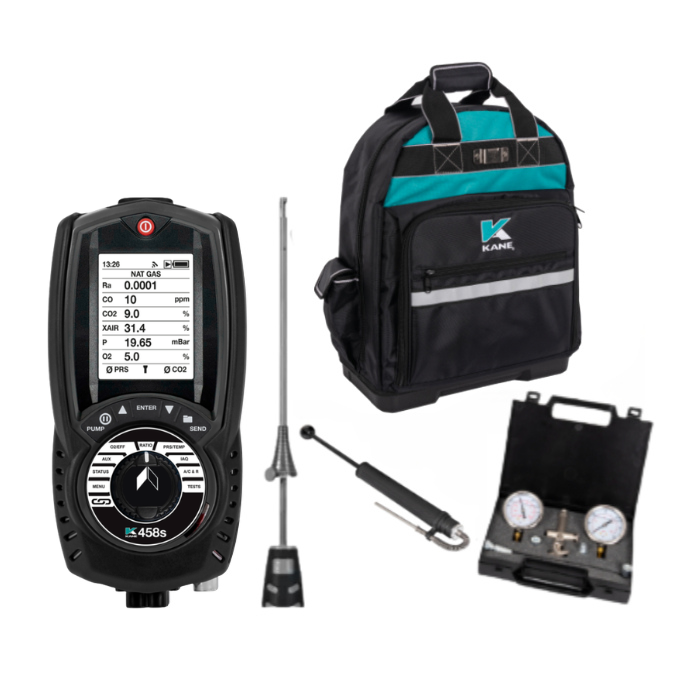

Kane 458s Flue Gas Analyser Oil Kit
The Kane 458s Flue Gas Analyser Oil Kit is purpose built, with a sophisticated flue gas analyser and useful accessories, for use on domestic and commercial oil-fired boilers. The analyser is fully capable of measuring a range of variable such as temperature, carbon dioxide, pressure, oxygen & carbon monoxide. With these measurements the analyser can calculate CO/CO2 ratio, excess air and combustion efficiency alongside tightness and let by testing. The 458s comes with wireless connectivity as standard and a fully upgradeable sensor. Operators can calculate NO, NO2, S02 and high range CO with the addition of an optional sensor.
A revolutionary CO purge pumps protects the sensors of the Kane 458s from over range damage, the analyser can measure both ambient CO, CO in the flue and is hydrogen ready up to 20%. Test newly installed boilers with the pre-installed automatic commissioning test sequence in accordance with Technical Bulletin 143. The device has a large screen capable of displaying six lines of results simultaneously, a tactile rotary dial and onboard memory.
The Kane 458s Oil Kit incorporates a range of compatible accessories for testing oil-fired systems. A flue probe, pressure connectors, oil pressure test kit and manual smoke pump are all included. Furthermore, with the Kane IRP2 infrared printer the operator can print hard copies while remaining on site and all components can be fitted and stored within the provided carry case. The Kane 458s is covered by a 10 year warranty provided by Kane and is available in a range of kits with various accessories as detailed below.
Kane Link
Future proof your flue gas analyser with the incredible Kane Link feature, available as standard on all Kane 458s, 958 & 988 analysers. As you take on bigger and bolder jobs, remain safe in the knowledge your Kane Flue Gas Analyser can handle whatever comes along. Even with the implementation of advanced systems such as Ground Source Heat Pumps and Hydrogen Boilers across the UK, thanks to Kane Link your Flue Gas Analyser will never be left behind.
Wirelessly connect any compatible Kane product which also features Kane Link, allowing you and your analyser to easily balance heating systems, check A/C units or kitchen fans, test rooms for CO and so much more. With Kane Link you're free to gather all information on the same device, your personal Kane Flue Gas Analyser. Kane Link enabled instruments currently include:
These Kane Link enabled analysers are not only built for harsh on-site conditions, should damage occur they are eligible for the amazing after care provided directly from Kane.
Kane Live & Printer Apps
The Kane Live App is compatible with Android Devices and free from the Play Store. This multilingual App includes several extremely useful features beneficial for anyone with a Flue Gas Analyser. See your test results live on your smart device and even tag them with real-time GPS data & printouts all while still physically on site. Printouts can be shared along with downloaded analyser logs as CSV files, with analyser user details amendable within the App itself.
The Kane Printer App is compatible with Android/iOS and is free from both the Play & App Store. With this app users can quickly connect to their analyser and view test results before emailing them to their contacts. Log each test location via GPS then save printouts to edit before transfer. Fully customise personal notes even in poor lighting conditions as a useful NightMode is incorporated within the app.
Kane 458s comparison table
The Kane 458s is available as a standalone product or as part of a kit. The table below shows a comparison table with all the different options available:
|
Standalone Analyser |
Standard Kit |
PRO Kit |
Pro Kit 2 |
CPA1 Kit |
CPA1 Kit 2 |
Oil Kit |
COM-CAT Kit |
CMDDA1 Kit |
Kane 458s Flue Gas Analyser |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
Wireless Connectivity |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
Probe |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
Pressure Connectors |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
CO Sensor Purge Pump Protection |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
KANE IRP-3 Infra-red printer |
- |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
Air/liquid temperature probe |
- |
- |
✔ |
✔ |
✔ |
✔ |
- |
- |
- |
GLD450 Plus Gas Leak Detector |
- |
- |
✔ |
✔ |
✔ |
✔ |
- |
- |
- |
Pipe Clamp Temperature Probes |
- |
- |
2 |
- |
2 |
- |
- |
- |
- |
Pressure connection hose |
- |
- |
✔ |
- |
✔ |
- |
- |
- |
- |
ASP3 Appliance Sampling Probe Kit |
- |
- |
- |
- |
✔ |
✔ |
- |
- |
- |
Oil Gauge test kit |
- |
- |
- |
- |
- |
- |
✔ |
- |
- |
Kane MSP Smoke Test Kit |
- |
- |
- |
- |
- |
- |
✔ |
- |
- |
Calibration Report |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
Carry Case |
- |
✔ |
✔ |
- |
✔ |
- |
✔ |
✔ |
✔ |
WPCP Wireless Clamp on pipe probes |
- |
-
|
- |
2 |
- |
2 |
- |
- |
- |
Kane 20106 Backpack |
- |
- |
- |
✔ |
- |
✔ |
- |
- |
- |
DTHA 2 Airflow |
- |
- |
- |
- |
- |
- |
- |
✔ |
- |
Temperature & RH Probe |
- |
- |
- |
- |
- |
- |
- |
✔ |
- |
20128 extender |
- |
- |
- |
- |
- |
- |
- |
✔ |
- |
Kane 79 CO Monitor |
- |
- |
- |
- |
- |
- |
- |
- |
✔ |
CPS1 room CO test probe |
- |
- |
- |
- |
- |
- |
- |
- |
✔ |
Kane Flue Gas Analyser Series
The Kane 358 Flue Gas Analyser is a highly useful tool capable of completing a variety of tasks crucial for commissioning and performing maintenance on gas systems & boilers. However the also available Kane 458 Combustion Flue Gas Analyser includes more advanced features such as CO safety checks and an optional NO sensor. Whilst with less features, the 258 is a more affordable package and an ideal entry level Flue Gas Analyser.
|
Kane 258 |
Kane 358 |
Kane 458s |
|
|
|
|
Features |
Yes |
Yes |
Yes |
Temperature Measurment |
Yes |
Yes |
Yes |
Wireless Connectivity |
Yes (Option) |
Yes (Option) |
Yes |
Pressure Measurment |
- |
Yes |
Yes |
Test Sequences |
- |
Yes |
Yes |
Room CO |
- |
- |
Yes |
Sensor Upgrades |
- |
- |
Yes |
KANE LINK |
- |
- |
Yes |
Indoor Air Quality |
- |
- |
Yes (Option) |
|
|
|
|
Applications |
|
|
|
Combustion Performance Checks |
Yes |
Yes |
Yes |
Combustion Efficiency Checks |
Yes |
Yes |
Yes |
Flue Draughts |
- |
Yes |
Yes |
Boiler Commissioning Test |
- |
Yes |
Yes |
Let By & Tightness Tests |
- |
Yes |
Yes |
CO safety checks |
- |
- |
Yes |
|
|
|
|
Measures |
|
|
|
CO 0 - 2,000pm |
Yes |
Yes |
Yes |
O2 0 - 21% |
Yes |
Yes |
Yes (option) |
Differential Temperature |
- |
Yes |
Yes |
Differential pressure meter +/- 80mbrar |
- |
Yes |
Yes |
CO2 direct with an Infra-Red sensor 0 - 20% |
- |
- |
Yes |
NO 0 - 600ppm |
- |
- |
Yes (option) |
CO 0 - 10,000ppm |
- |
- |
Yes (option) |
|
|
|
|
Calculates |
|
|
|
CO2 0 - 20% |
Yes |
Yes |
Yes |
CO / CO2 ratio |
Yes |
Yes |
Yes |
Excess Air |
Yes |
Yes |
Yes |
Combustion Efficiency |
Yes |
Yes |
Yes |
O2 |
- |
- |
Yes |
|
|
|
|
Contents |
|
|
|
FGA CP2 Probe |
Yes |
Yes |
Yes |
USB Charger |
Yes |
Yes |
Yes |
IRP-3 Infrared Printer |
Yes (option) |
Yes (option) |
Yes (option) |
Carry Bag |
Yes (option) |
Yes (option) |
Yes (option) |
Pressure Connectors |
- |
- |
Yes |
GLD Gas Leak Detector |
- |
Yes (option) |
Yes (option) |
KAL1 & KPCP Pipe Clamp Temperature Probes |
- |
Yes (option) |
Yes (option) |
HARHOSE Pressure tubing |
- |
Yes (option) |
Yes (option) |
KANEMSP & SP9 Smoke Pump & Papers |
- |
Yes (option) |
Yes (option) |
ASP3 Oven & Grill Probes |
- |
Yes (option) |
Yes (option) |
Oil Pressure test set |
- |
Yes (option) |
Yes (option) |
