- KANE 458s Link Flue Gas Analyser
- CP2T combustion probe
- KANE IRP-3 printer
- 20106 Backpack
- Kane ASP3 cooker, fire and grill appliance testing probes
- Kane GLD
- KAL1 Air/Liquid Temperature probe
- 2 x WPCP Wireless clamp-on pipe probes
- USB Charger
- Flue gas analyser measuring CO, CO2, differential pressure and more
- Kit includes cooker, fire and grill appliance testing probes
- Wireless connectivity as standard
- Qualifies for KANE CARE after sales support
Use reward points to get money off future purchases.
Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.
Found this product cheaper & in stock somewhere else? Give us the details and we'll endeavour to match the price.
To price match, contact us online or call 0113 248 9966.
We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.
Find out more on our delivery information page.
We want our customers to be fully satisfied with the goods they purchase from us, offering returns for up to 60 days.
Find out more about our refunds policy here.
We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.
To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.
Use reward points to get money off future purchases.
Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.
Found this product cheaper & in stock somewhere else? Give us the details and we'll endeavour to match the price.
To price match, contact us online or call 0113 248 9966.
We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.
Find out more on our delivery information page.
We want our customers to be fully satisfied with the goods they purchase from us, offering returns for up to 60 days.
Find out more about our refunds policy here.
We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.
To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.

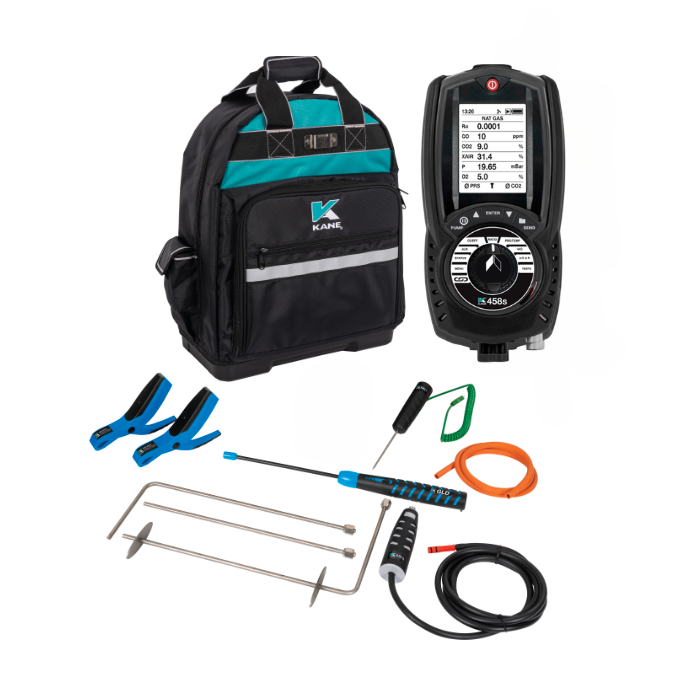

KANE 458s Link Flue Gas Analyser CPA1 Kit 2
The KANE 458s Link Flue Gas Analyser CPA1 Kit 2 is the ideal kit for completing the commission testing on new boilers. The CPA1 Kit 2 includes a set of ASP3 cooker, fire and grill appliance testing probes allowing for performance analysis of flueless appliances to be conducted. User safety is enhanced thanks to the included GLD/450Plus gas leak detector which provides a warning of combustible gas concentrations above 50ppm. Two Kane WPCP wireless probes are also included with the analyser and all kit components can be neatly and safely stored in the Kane backpack provided.
Kane 458s Flue Gas Analyser
The Kane 458s Flue Gas Analyser allows for the use of the flue gas analyser co conduct a number of aspects of combustions, including CO/CO2 ratio, oxygen content, excess air and efficiency and also tightness and let by. With wireless communication, the 458s is hydrogen (H2) ready (up to 20% blend) with a fully upgradable sensor. With the addition of an optional sensor that allows for the calculation of NO, NO2 SO2 and high range CO.
The Kane 458s is capable of detecting a number of different fuel types including natural gas, LPG, Wood pellets, butane, light oil and propane. With an innovative purge pump system that ensures the Kane 458s CO sensor is protected from over range. CO measurement function is deployed using the automatic boiler commissioning test sequence that allows the user to certify new boilers according to the requirements of Technical Bulletin 143. With a large screen showing six lines of text showing multiple test parameters with test results instantly available in a physical copy thanks to the included Kane IRP-3 Infrared Printer.
The Kane 458s Link Flue Gas Analyser has an innovative pump sensor protection system providing an ideal instrument for performing commission testing on new boilers.
Kane Link
The Kane 458s is compatible with Kane Link, allowing for wireless connection to all Kane products which feature Kane Link. Kane Link will allow for the easy balancing of heating systems, check A/C units or kitchen fans, test rooms for CO and many more applications. Kane Link allows for the collection of data and store it on the same device,
Kane Live
The Kane Live App is compatible with Android devices and free to download from the Google Play store. The multilingual Lopo allows for test results to viewed in real time and tag them with real time GPS data and printouts even when on site. Printouts can be shared with colleagues or customers with downloaded analyser logs as CSV files
Kane Care
5 Year Service Plan (Option)
With KANE’s 5 Year Service Plan, you can be assured that the first 4 service and recalibration are taken care of providing you with 5 years of cover for your new analyser with no further costs to worry about.
By selecting this option, not only will you save over £100 on recalibration costs, but you will also benefit from the following:
- No additional service and calibration costs for the first 5 years
- Free collection and delivery options for annual service and recalibration
- SAME DAY service and recalibration
- No quibble repairs and no hidden costs
- Theft protection – in the unfortunate event that your analyser is stolen, KANE will replace it for FREE!
Complete peace of mind for less than 22p per day.
Simply check the box ‘Add KANE 5 Year Service Plan’ when you place your order, and your new analyser with ship with a 5 year service pack.
After Sales Support
This product also qualifies for Kane Care after sales support, guaranteeing you a 10 year 'No Quibble' warranty for your annual service, same day service & recertification and free tracked, next day delivery to Kane with returns.
All Kane Flue Gas Analysers come with the after sales support as standard.
For more information, please visit Kane.co.uk.
Kane 458s comparison table
The Kane 458s is available as a standalone product or as part of a kit. The table below shows a comparison table with all the different options available:
Standalone Analyser | Standard Kit | PRO Kit | Pro Kit 2 | CPA1 Kit | CPA1 Kit 2 | Oil Kit | COM-CAT Kit | CMDDA1 Kit | |
---|---|---|---|---|---|---|---|---|---|
Kane 458s Flue Gas Analyser | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Wireless Connectivity | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Probe | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Pressure Connectors | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
CO Sensor Purge Pump Protection | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
KANE IRP-3 Infra-red printer | - | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Air/liquid temperature probe | - | - | ✔ | ✔ | ✔ | ✔ | - | - | - |
GLD450 Plus Gas Leak Detector | - | - | ✔ | ✔ | ✔ | ✔ | - | - | - |
Pipe Clamp Temperature Probes | - | - | 2 | - | 2 | - | - | - | - |
Pressure connection hose | - | - | ✔ | - | ✔ | - | - | - | - |
ASP3 Appliance Sampling Probe Kit | - | - | - | - | ✔ | ✔ | - | - | - |
Oil Gauge test kit | - | - | - | - | - | - | ✔ | - | - |
Kane MSP Smoke Test Kit | - | - | - | - | - | - | ✔ | - | - |
Calibration Report | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Carry Case | - | ✔ | ✔ | - | ✔ | - | ✔ | ✔ | ✔ |
WPCP Wireless Clamp on pipe probes | - |
- |
- | 2 | - | 2 | - | - | - |
Kane 20106 Backpack | - | - | - | ✔ | - | ✔ | - | - | - |
DTHA 2 Airflow | - | - | - | - | - | - | - | ✔ | - |
Temperature & RH Probe | - | - | - | - | - | - | - | ✔ | - |
20128 extender | - | - | - | - | - | - | - | ✔ | - |
Kane 79 CO Monitor | - | - | - | - | - | - | - | - | ✔ |
CPS1 room CO test probe | - | - | - | - | - | - | - | - | ✔ |
The Kane 458s is available as a standalone product or as part of a kit. The table below shows a comparison between the different options available:
Standalone Analyser | Standard Kit | PRO Kit | Pro Kit 2 | CPA1 Kit | CPA1 Kit 2 | Oil Kit | COM-CAT Kit | CMDDA1 Kit | |
---|---|---|---|---|---|---|---|---|---|
Kane 458s Flue Gas Analyser | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Wireless Connectivity | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Probe | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Pressure Connectors | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
CO Sensor Purge Pump Protection | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
KANE IRP-3 Infra-red printer | - | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Air/liquid temperature probe | - | - | ✔ | ✔ | ✔ | ✔ | - | - | - |
GLD450 Plus Gas Leak Detector | - | - | ✔ | ✔ | ✔ | - | - | - | - |
Pipe Clamp Temperature Probes | - | - | 2 | - | 2 | - | - | - | - |
Pressure connection hose | - | - | ✔ | - | ✔ | - | - | - | - |
ASP3 Appliance Sampling Probe Kit | - | - | - | - | ✔ | ✔ | - | - | - |
Oil pressure test set | - | - | - | - | - | - | ✔ | - | - |
Calibration Report | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Carry Case | - | ✔ | ✔ | - | ✔ | - | ✔ | ✔ | - |
WPCP Wireless Clamp on pipe probes | - |
- |
- | 2 | - | 2 | - | - | - |
Kane 20106 Backpack | - | - | - | ✔ | - | ✔ | - | - | - |
DTHA 2 Airflow | - | - | - | - | - | - | - | ✔ | - |
Temperature & RH Probe | - | - | - | - | - | - | - | ✔ | - |
20128 extender | - | - | - | - | - | - | - | ✔ | - |
Kane 79 CO Monitor | - | - | - | - | - | - | - | ✔ | - |
CPS1 room CO test probe | - | - | - | - | - | - | - | ✔ | - |
Key Features
- Carbon monoxide measurement 0 to 20%
- Carbon dioxide measurement 0 to 2000ppm
- Kane IRP-3 infrared printer included
- KAL1 air liquid temperature probe included
- GLD/450plus gas leak detector included
- Kane ASP3 cooker, fire and grill appliance testing probes
- 2 x WPCP Wireless clamp-on pipe probes
- Analyser has built-in wireless communication
- Measures differential pressure and temperature
- Hydrogen ready (H2 up to 20% blend)
- Calculate CO/CO2 ratio
- Calculate oxygen content
- Calculate excess air
- Efficiency calculation
- Let by/tightness testing
- Automatic commissioning test sequence for boilers
- Purge pump system protects CO sensor from over range
- Suitable for wide variety of fuels
- 20106 Backpack
- Kane 10 Year Warranty
Kane part number: 458S CPA1 Kit 2
* Selecting any additional filters may affect lead times
Kane Flue Gas Analyser Series
The Kane 458s Combustion Flue Gas Analyser includes more advanced features than the Kane 258 and 358 analsyers, such as CO safety checks and an optional NO sensor. The Kane 358 Flue Gas Analyser is a highly useful tool capable of completing a variety of tasks crucial for commissioning and performing maintenance on gas systems & boilers. Whilst with less features, the 258 is a more affordable package and an ideal entry level Flue Gas Analyser.
Kane 258 | Kane 358 | Kane 458s | |
---|---|---|---|
Features | Yes | Yes | Yes |
Temperature Measurment | Yes | Yes | Yes |
Wireless Connectivity | Yes (Option) | Yes (Option) | Yes |
Pressure Measurment | - | Yes | Yes |
Test Sequences | - | Yes | Yes |
Room CO | - | - | Yes |
Sensor Upgrades | - | - | Yes |
KANE LINK | - | - | Yes |
Indoor Air Quality | - | - | Yes (Option) |
Applications | |||
Combustion Performance Checks | Yes | Yes | Yes |
Combustion Efficiency Checks | Yes | Yes | Yes |
Flue Draughts | - | Yes | Yes |
Boiler Commissioning Test | - | Yes | Yes |
Let By & Tightness Tests | - | Yes | Yes |
CO safety checks | - | - | Yes |
Measures | |||
CO 0 - 2,000pm | Yes | Yes | Yes |
O2 0 - 21% | Yes | Yes | Yes (option) |
Differential Temperature | - | Yes | Yes |
Differential pressure meter +/- 80mbrar | - | Yes | Yes |
CO2 direct with an Infra-Red sensor 0 - 20% | - | - | Yes |
NO 0 - 600ppm | - | - | Yes (option) |
CO 0 - 10,000ppm | - | - | Yes (option) |
Calculates | |||
CO2 0 - 20% | Yes | Yes | Yes |
CO / CO2 ratio | Yes | Yes | Yes |
Excess Air | Yes | Yes | Yes |
Combustion Efficiency | Yes | Yes | Yes |
O2 | - | - | Yes |
Contents | |||
FGA CP2 Probe | Yes | Yes | Yes |
USB Charger | Yes | Yes | Yes |
IRP-3 Infrared Printer | Yes (option) | Yes (option) | Yes (option) |
Carry Bag | Yes (option) | Yes (option) | Yes (option) |
Pressure Connectors | - | - | Yes |
GLD Gas Leak Detector | - | Yes (option) | Yes (option) |
KAL1 & KPCP Pipe Clamp Temperature Probes | - | Yes (option) | Yes (option) |
HARHOSE Pressure tubing | - | Yes (option) | Yes (option) |
KANEMSP & SP9 Smoke Pump & Papers | - | Yes (option) | Yes (option) |
ASP3 Oven & Grill Probes | - | Yes (option) | Yes (option) |
Oil Pressure test set | - | Yes (option) | Yes (option) |
What's In The Box?
-
KANE 458s High range CO sensor (0-10,000ppm) H2 compensated SKU: KANE458SCOSENSOR£265.00 (ex VAT)£318.00 (inc VAT)
-
Kane WPCP2 Link Wireless Pipe Clamp Temperature Probe (x2) SKU: KANEWPCP2£160.00 (ex VAT)£192.00 (inc VAT)
-
Kane DTHA2 Link Wireless Airflow, Temperature & Humidity Adaptor SKU: KANEDTHA2£165.00 (ex VAT)£198.00 (inc VAT)
-
Kane 79 Link Wireless Ambient Carbon Monoxide (CO) Monitor SKU: KANE79£198.00 (ex VAT)£237.60 (inc VAT)
-
Kane CP2T 28.5cm PTFE Lined Combustion Probe with 3m Hose SKU: KANECP2T£162.00 (ex VAT)£194.40 (inc VAT)
-
Kane CP30 24cm Combustion & Pressure Probe with 2m Hose SKU: KANECP30£129.00 (ex VAT)£154.80 (inc VAT)
-
SGAP Replaceable Combustion Probe & Flexible Tube for Kane SGA SKU: KANESGAP£131.00 (ex VAT)£157.20 (inc VAT)
